Topcon OPUS C series
Topcon OPUS C Series
The OPUS C Series gives one HMI platform across multiple screen sizes for projects that need a consistent display family. It is suited to more advanced interfaces where processor headroom, high-resolution displays and modern connectivity are important.

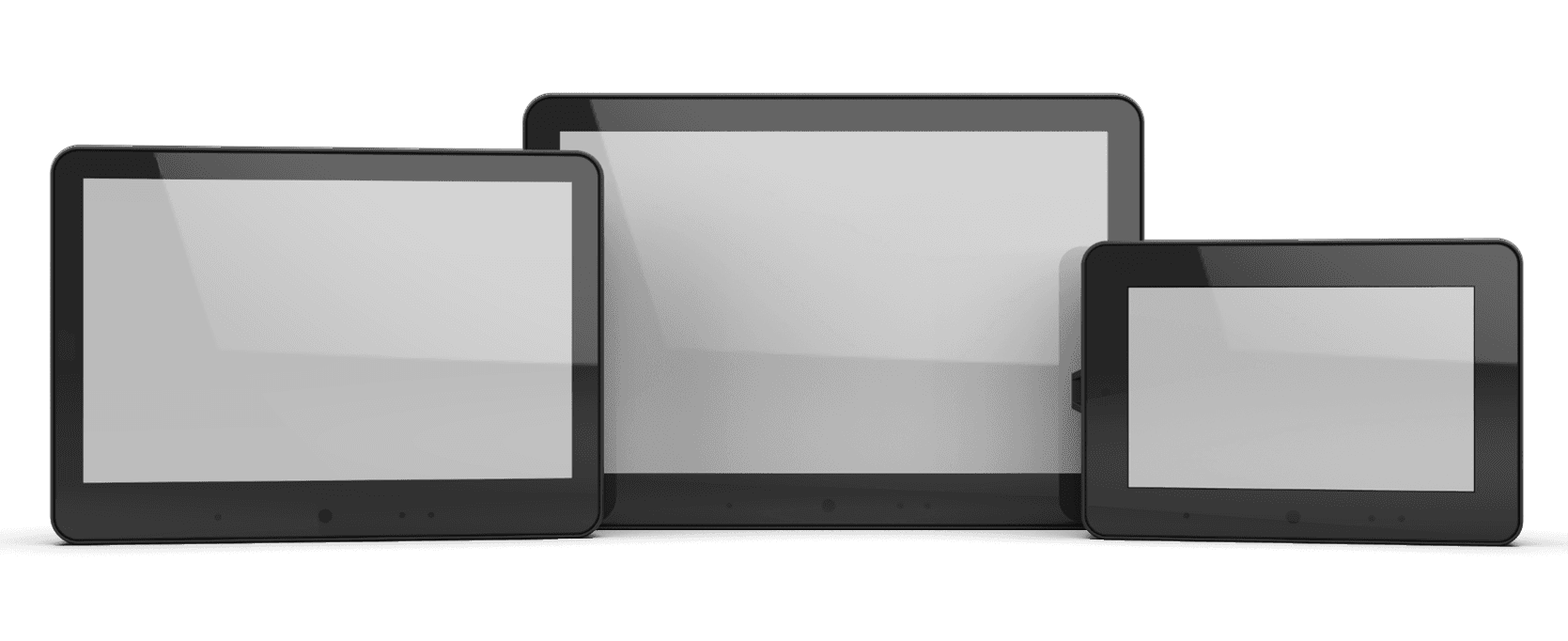

Topcon OPUS C Series front view 1/4
Highlights
- Display: C7, C10, C12 and C15 touchscreen formats
- Operator controls: Touchscreen
- Interfaces: 3 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 2 x RS232 (only RxD, TxD, GND); 1 x USB 3 Type C super speed, 1.5 Gbit/s...
- Rugged rating: operating -30 to +75 deg C, storage -30 to +85 deg C, IP66 protection
- Protocols: CANopen; CANfreestyle; J1939
Technical data
- Display
- C7 - 7 in, 15:9 TFT; 800 x 480 px, 800 cd/m2; Contrast ratio 1000:1; C10 - 10.1 in, 16:10 TFT; 1280 x 800 px, 900 cd/m2; Contrast ratio 800:1; C12 - 12.1 in, 16:10 TFT; 1280 x 800 px, 1100 cd/m2; Contrast ratio 1000:1; C15 - 15 in, 24:9 TFT; 1920 x 720 px, 900 cd/m2; Contrast ratio 1300:1
- User interface
- Touchscreen
- Processor
- 32-bit, 1600 MHz; Freescale I.MX8 QuadPlus
- Operating system
- Linux Kernel 6.1.1 or higher
- Memory
- 4 GB DDR4 RAM; 10 GB pSCL
- Interfaces
- 3 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 2 x RS232 (only RxD, TxD, GND); 1 x USB 3 Type C super speed, 1.5 Gbit/s; 1 x USB 2 Type A high speed, 480 Mbit/s; 2 x Automotive Ethernet 10/100 Mbit/s Base T1; 4 x Digital/Frequency Inputs; 1 x Analog Input; 3 x Digital Output Open Drain; 1 x Digital Frequency Output Open Drain; 1 x Digital Output High-Side I max 500 mA
- Supported protocols
- CANopen; CANfreestyle; J1939
- Power supply
- 9 to 36 V DC
- Environmental conditions
- operating -30 to +75 deg C; storage -30 to +85 deg C; Protection: IP66; Mechanical Shock: Level 2; Random Vibration: Level 2; Sinusoidal Vibration: Level 2
- Housing
- Orientation landscape or portrait; C7 - W 200.6 x H 137.6 x D 41.5 mm excl. connector and cables; C10 - W 248 x H 179.8 x D 50 mm excl. connector and cables; C12 - W 299 x H 210 x D 53.5 mm excl. connector and cables; C15 - W 388.5 x H 188.3 x D 50 mm excl. connector and cables; Aluminium die cast, powder coated
- Sensors and indicators
- Light sensor; Proximity Sensor; Acceleration Sensor; Multicolor-LED
- Audio
- Microphone; Speaker, approx. 90 dB(A)

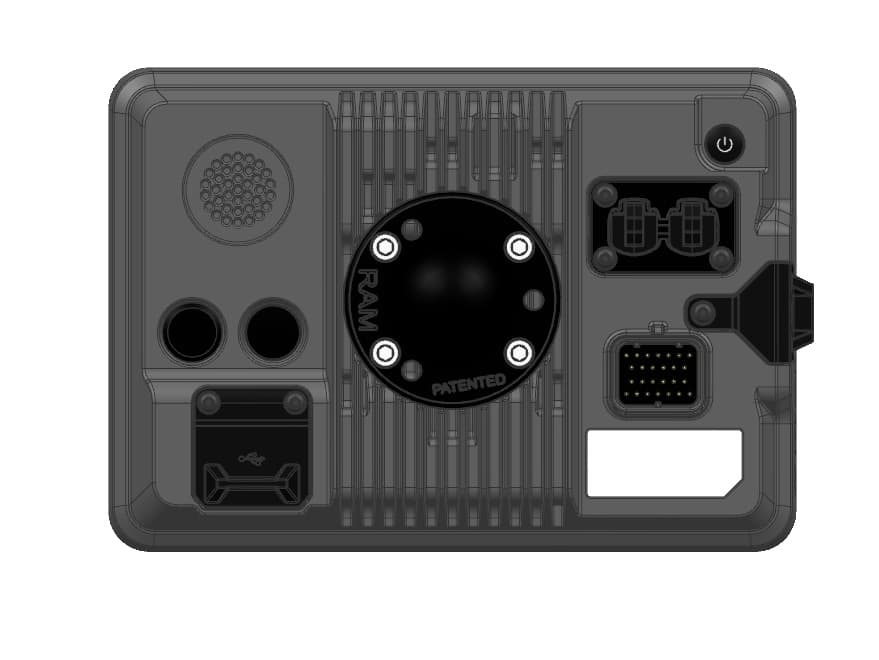

- Connectors
- Main: AMP Seal, 26 pin; Ethernet: M12 round, 4 pole, D-coded
