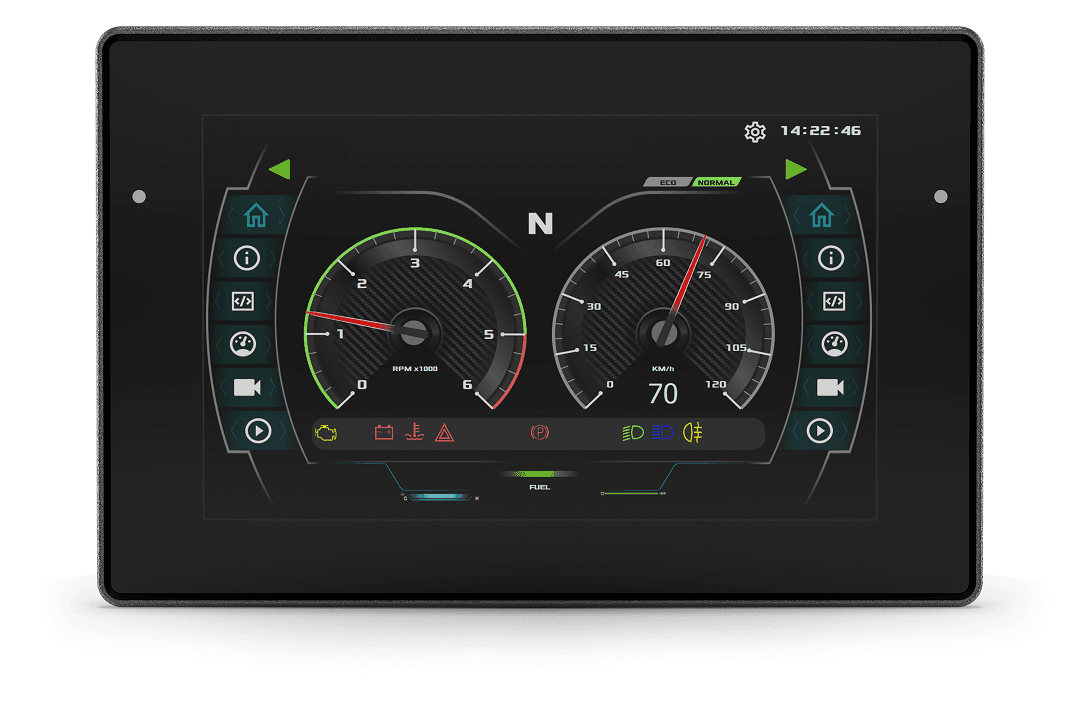

Topcon OPUS B4e

Highlights

• Display: 7 in, 15:9 TFT; 800 x 480 px, 800 cd/m2; Contrast ratio 700:1
• Operator controls: Touchscreen
• Interfaces: 2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 1 x RS232 (only RxD, TxD, GND); 2 x USB 2.0 high speed; Ethernet 10/100 Mbit/s Base T
• Rugged rating: operating -30 to +75 deg C, storage -40 to +85 deg C, IP66 protection
• Protocols: CANopen; CANfreestyle; J1939

Technical data

Display

7 in, 15:9 TFT; 800 x 480 px, 800 cd/m2; Contrast ratio 700:1

User interface

Touchscreen

Processor

32-bit, 800 MHz; Freescale I.MX6

Operating system

Linux Kernel 5.4.129 or higher

Memory

1 GB DDR2 RAM; 4 GB NAND flash

Interfaces

2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 1 x RS232 (only RxD, TxD, GND); 2 x USB 2.0 high speed; Ethernet 10/100 Mbit/s Base T

Supported protocols

CANopen; CANfreestyle; J1939

Power supply

8 to 36 V DC

Environmental conditions

operating -30 to +75 deg C; storage -40 to +85 deg C; Protection: IP66; Mechanical Shock: Level 2; Random Vibration: Level 2; Sinusoidal Vibration: Level 2

Housing

Orientation landscape or portrait; W 202 x H 132.5 x D 40.3 mm excl. connector and cables; Aluminium die cast

Sensors and indicators

Light sensor; Multicolor-LED

Audio

1 x Audio output (left, right, GND), AC97 compatible; Output power: approx. 50mW; Speaker, approx. 90 dB(A)

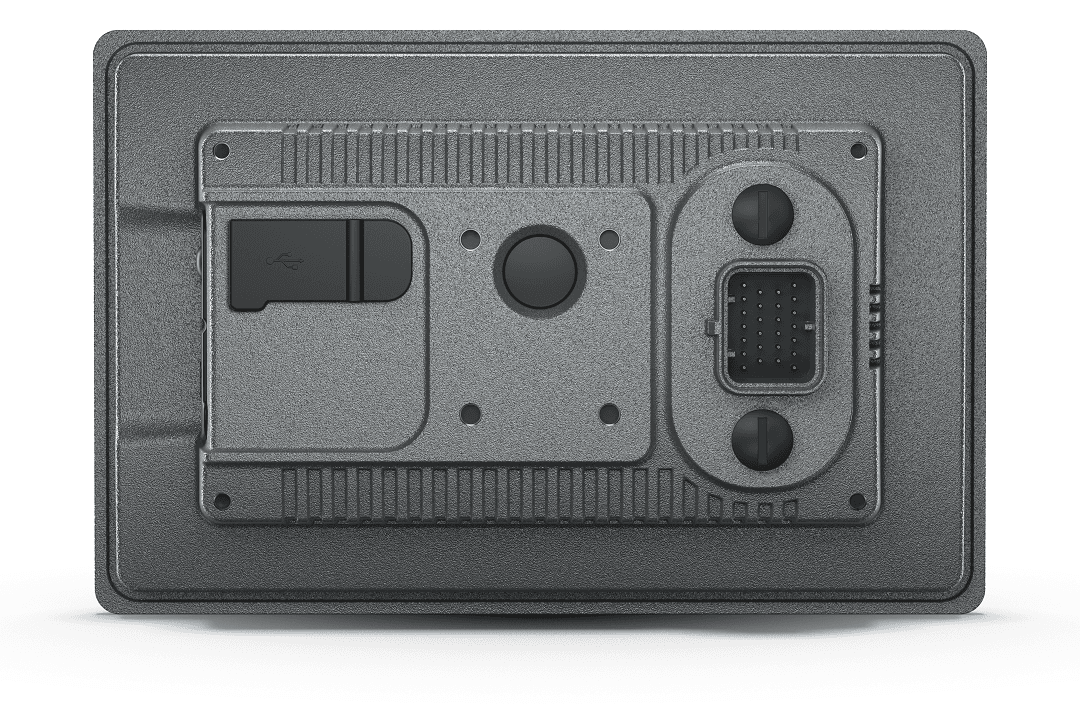

Connectors

Main: AMP Seal, 26 pin; Video: M12 round, 5 pole, B-coded; Ethernet: M12 round, 4 pole, D-coded
