Topcon OPUS B3e
The OPUS B3e brings the rugged B-series platform into a 5 inch touch display. It is a practical choice for tighter operator areas that still need Ethernet, CAN-Bus and robust housing performance.

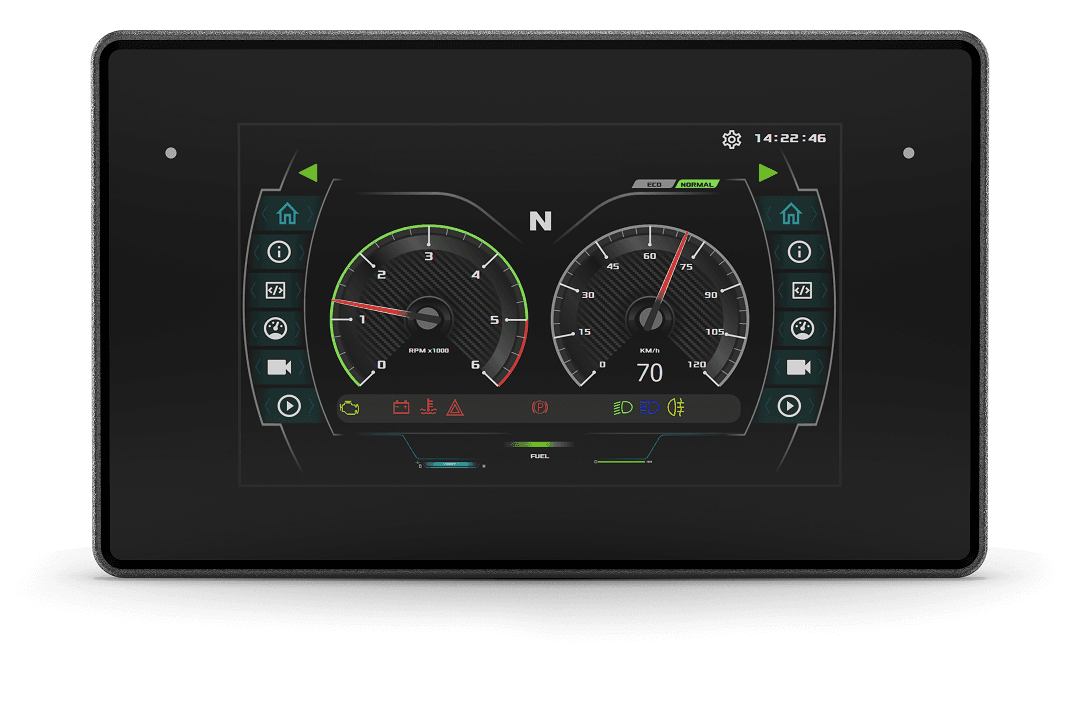

Topcon OPUS B3e front view 1/3
Highlights
- Display: 5 in, 15:9 TFT; 800 x 480 px, 800 cd/m2; Contrast ratio 700:1
- Operator controls: Touchscreen
- Interfaces: 2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 1 x RS232 (only RxD, TxD, GND); 1 USB 2.0 full speed; Ethernet 10/100 Mbit/s Base T
- Rugged rating: operating -30 to +75 deg C, storage -40 to +85 deg C, IP66 protection
- Protocols: CANopen; CANfreestyle; J1939
Technical data
- Display
- 5 in, 15:9 TFT; 800 x 480 px, 800 cd/m2; Contrast ratio 700:1
- User interface
- Touchscreen
- Processor
- 32-bit, 800 MHz; Freescale I.MX6
- Operating system
- Linux Kernel 5.4.129 or higher
- Memory
- 512 MB DDR2 RAM; 4 GB NAND flash
- Interfaces
- 2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 1 x RS232 (only RxD, TxD, GND); 1 USB 2.0 full speed; Ethernet 10/100 Mbit/s Base T
- Supported protocols
- CANopen; CANfreestyle; J1939
- Power supply
- 8 to 36 V DC
- Environmental conditions
- operating -30 to +75 deg C; storage -40 to +85 deg C; Protection: IP66; Mechanical Shock: Level 2; Random Vibration: Level 2; Sinusoidal Vibration: Level 2
- Housing
- Orientation landscape or portrait; W 163 x H 99.7 x D 40.8 mm excl. connector and cables; Aluminium die cast
- Sensors and indicators
- Light sensor; Multicolor-LED
- Audio
- 1 x Audio output (left, right, GND), AC97 compatible; Output power: approx. 50mW; Speaker, approx. 90 dB(A)

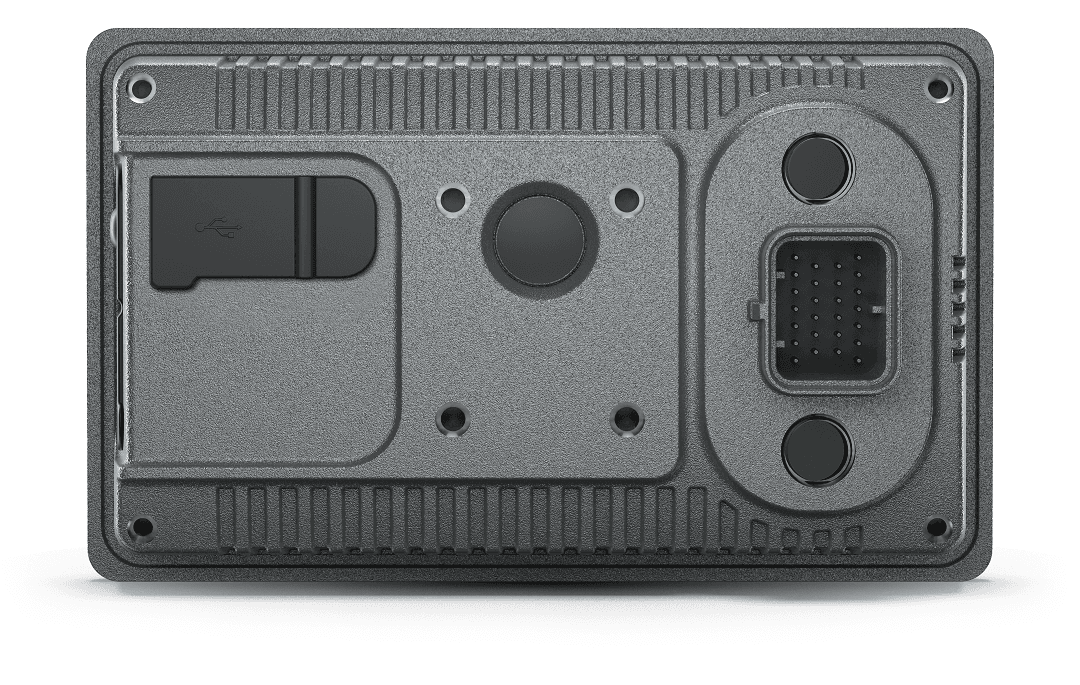

- Connectors
- Main: AMP Seal, 26 pin; Video: M12 round, 5 pole, B-coded; Ethernet: M12 round, 4 pole, D-coded
