Topcon OPUS B series

Topcon OPUS B2s

The OPUS B2s is a compact B-series HMI for rugged applications where a small display still needs physical soft keys and CAN-Bus connectivity. Eltronic can help match it to the application environment, cabling and software stack.

Discuss OPUS B2s

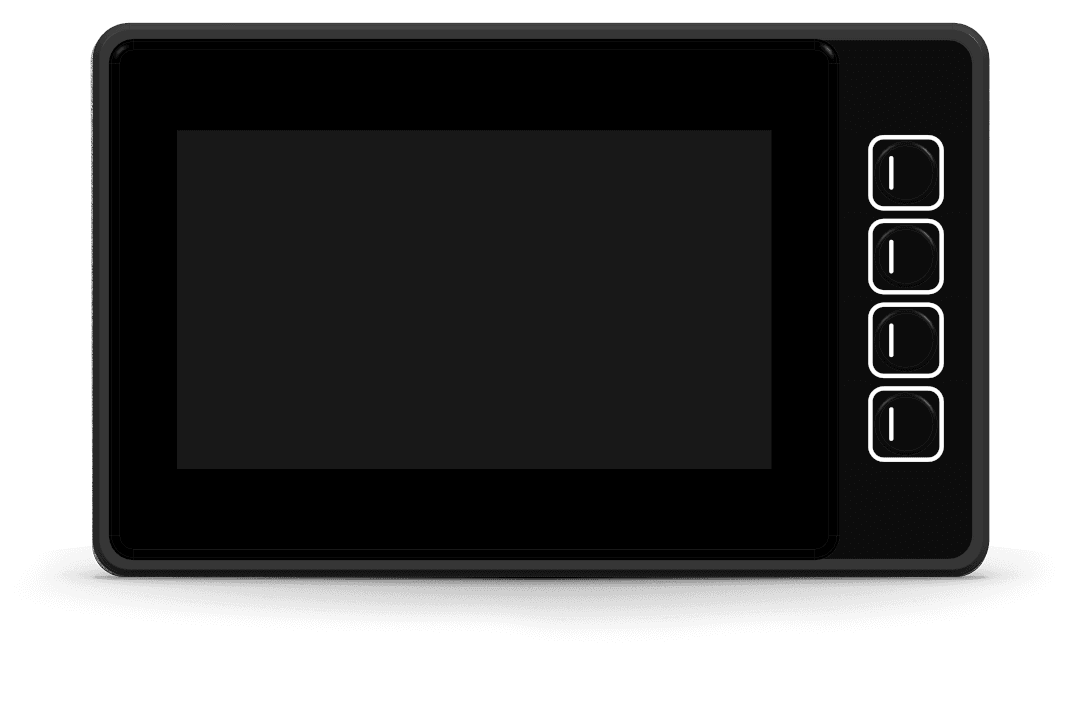

Topcon OPUS B2s front view 1/4

DefaultRugged HMI displays

Highlights

  • Display: 4.3 in, 15:9 TFT; 480 x 272 px, 800 cd/m2; Contrast ratio 800:1
  • Operator controls: 4 Softkeys; Touchscreen
  • Interfaces: 2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 1 USB 2.0, Type C, high speed
  • Rugged rating: operating -30 to +75 deg C, storage -40 to +85 deg C, IP66/IP67 protection
  • Protocols: CANopen; CANfreestyle (CAN Layer 2); J1939

Technical data

Display
4.3 in, 15:9 TFT; 480 x 272 px, 800 cd/m2; Contrast ratio 800:1
User interface
4 Softkeys; Touchscreen
Processor
32-bit, 528 MHz; Freescale I.MX6ULL
Operating system
Linux Kernel 6.1.45 or higher
Memory
256 MB DDR3 RAM; 3 GB eMMC Mass storage
Interfaces
2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; 1 USB 2.0, Type C, high speed
Supported protocols
CANopen; CANfreestyle (CAN Layer 2); J1939
Power supply
9 to 36 V DC
Environmental conditions
operating -30 to +75 deg C; storage -40 to +85 deg C; Protection: IP66/IP67; Mechanical Shock: Level 2; Random Vibration: Level 2; Sinusoidal Vibration: Level 2
Housing
Orientation landscape or portrait; W 144.2 x H 89 x D 36 mm excl. connector and cables; Glass, PC/ABS; Autotex XEF200
Audio
Buzzer, approx. 90 dB(A) at 3500 Hz

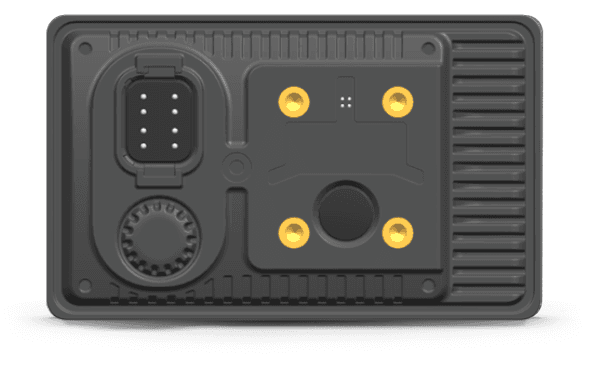

Connectors
Main: Deutsch DT06-08SA 8 pin

Documents

Topcon OPUS B2s basic datasheetTopcon OPUS B2s full datasheetTopcon OPUS B2s operating manual
