Topcon OPUS A6s
The OPUS A6s pairs the 7 inch A-series display with practical physical controls. It is useful for operator stations where gloves, movement or repeated controls make hard keys and an encoder valuable.

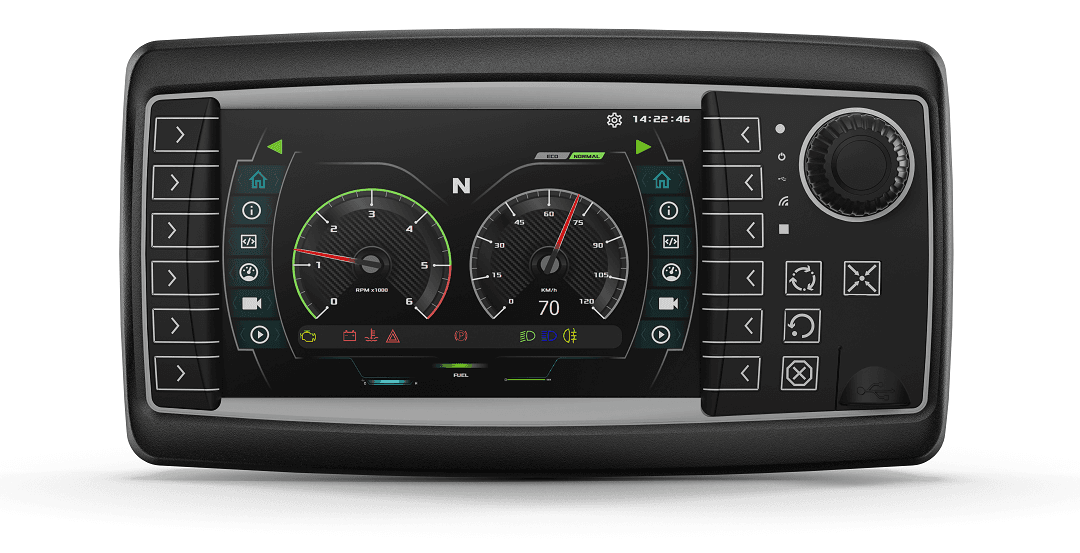

Topcon OPUS A6s front view 1/4
Highlights
- Display: 7 in, 15:9 TFT transmissive; 800 x 480 px, 500 cd/m2; Contrast ratio 600:1
- Operator controls: 12 softkeys; 4 hardkeys; Encoder; Touchscreen
- Interfaces: 2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; Ethernet 10/100 Mbit/s Base T; 1 x RS232 (only RxD, TxD, GND); Analog/Digital I/O...
- Rugged rating: operating -30 to +65 deg C, storage -40 to +85 deg C, IP65/IP66 protection
- Protocols: CANopen; CANfreestyle; J1939
Technical data
- Display
- 7 in, 15:9 TFT transmissive; 800 x 480 px, 500 cd/m2; Contrast ratio 600:1
- User interface
- 12 softkeys; 4 hardkeys; Encoder; Touchscreen
- Processor
- 32-bit, 800 MHz; Freescale I.MX6
- Operating system
- Linux Kernel 3.0.0 or higher
- Memory
- 512 MB DDR2 RAM; 4 GB NAND EMMC
- Interfaces
- 2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; Ethernet 10/100 Mbit/s Base T; 1 x RS232 (only RxD, TxD, GND); Analog/Digital I/O; 4 analog/digital inputs; 3 digital outputs; 1 USB 2.0 high speed on main connector; 1 USB 2.0 high speed on front
- Supported protocols
- CANopen; CANfreestyle; J1939
- Power supply
- 9 to 36 V DC
- Environmental conditions
- operating -30 to +65 deg C; storage -40 to +85 deg C; Protection: IP65/IP66; Mechanical Shock: Level 2; Random Vibration: Level 2; Sinusoidal Vibration: Level 2
- Housing
- Orientation landscape or portrait; W267 x H144 x D69.5 mm; excl. connector and cables
- Sensors and indicators
- Light sensor; Multicolor-LED; 3 status-LEDs
- Audio
- 1 x Audio output (left, right, GND); Output power: approx. 65 mW @32 Ohm; Speaker, approx. 80 dB(A)

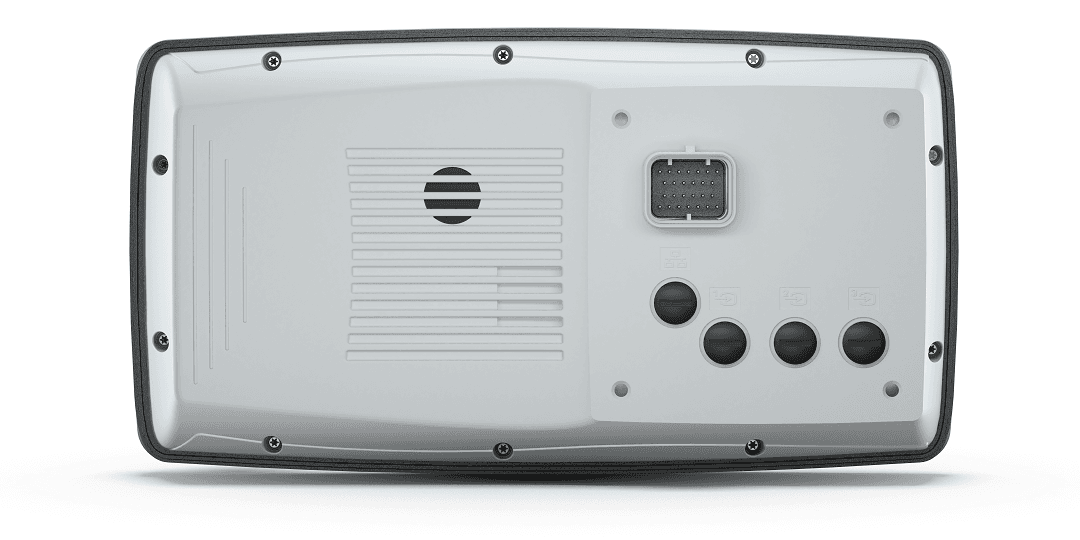

- Connectors
- Main: AMP Seal, 26 pin; Video: M12 round, 5 pole, B-coded; Ethernet: M12 round, 4 pole, D-coded
