Topcon OPUS A6e

The OPUS A6e is a 7 inch touch-led A-series display for applications that need a readable operator panel with CAN-Bus, Ethernet and I/O support. It works well where the control interface needs to be specified alongside wiring, mounting and software.

Discuss OPUS A6e

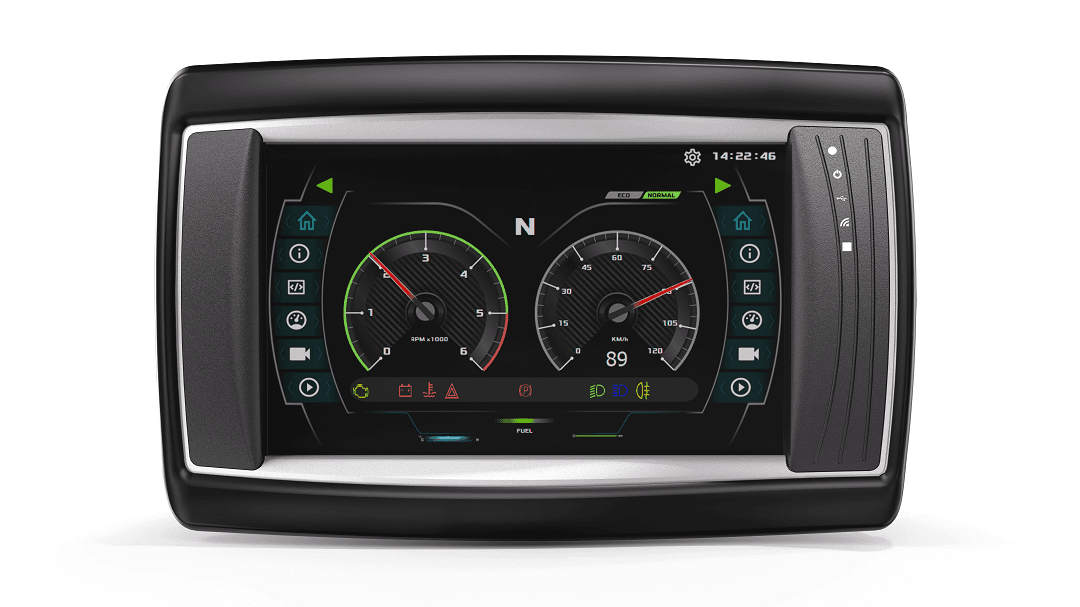

Topcon OPUS A6e front view 1/4

DefaultRugged HMI displays

Highlights

  • Display: 7 in, 15:9 TFT transmissive; 800 x 480 px, 500 cd/m2; Contrast ratio 600:1
  • Operator controls: Touchscreen
  • Interfaces: 2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; Ethernet 10/100 Mbit/s Base T; 1 x RS232 (only RxD, TxD, GND)...
  • Rugged rating: operating -30 to +65 deg C, storage -40 to +85 deg C, IP65/IP66 protection
  • Protocols: CANopen; CANfreestyle; J1939

Technical data

Display
7 in, 15:9 TFT transmissive; 800 x 480 px, 500 cd/m2; Contrast ratio 600:1
User interface
Touchscreen
Processor
32-bit, 800 MHz; Freescale I.MX6
Operating system
Linux Kernel 4.0.0 or higher
Memory
512 MB DDR2 RAM; 4 GB NAND EMMC
Interfaces
2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; Ethernet 10/100 Mbit/s Base T; 1 x RS232 (only RxD, TxD, GND); Analog/Digital I/O: 4 analog/digital inputs; 3 digital outputs; 1 USB 2.0 high speed
Supported protocols
CANopen; CANfreestyle; J1939
Power supply
9 to 36 V DC
Environmental conditions
operating -30 to +65 deg C; storage -40 to +85 deg C; Protection: IP65/IP66; Mechanical Shock: Level 2; Random Vibration: Level 2; Sinusoidal Vibration: Level 2
Housing
Orientation landscape or portrait; W223 x H139 x D57.5 mm; excl. connector and cables
Sensors and indicators
Light sensor; Multicolor-LED; 3 Status-LEDs
Audio
1 x Audio output (left, right, GND); Output power: approx. 65 mW @32 Ohm; Speaker, approx. 80 dB(A)

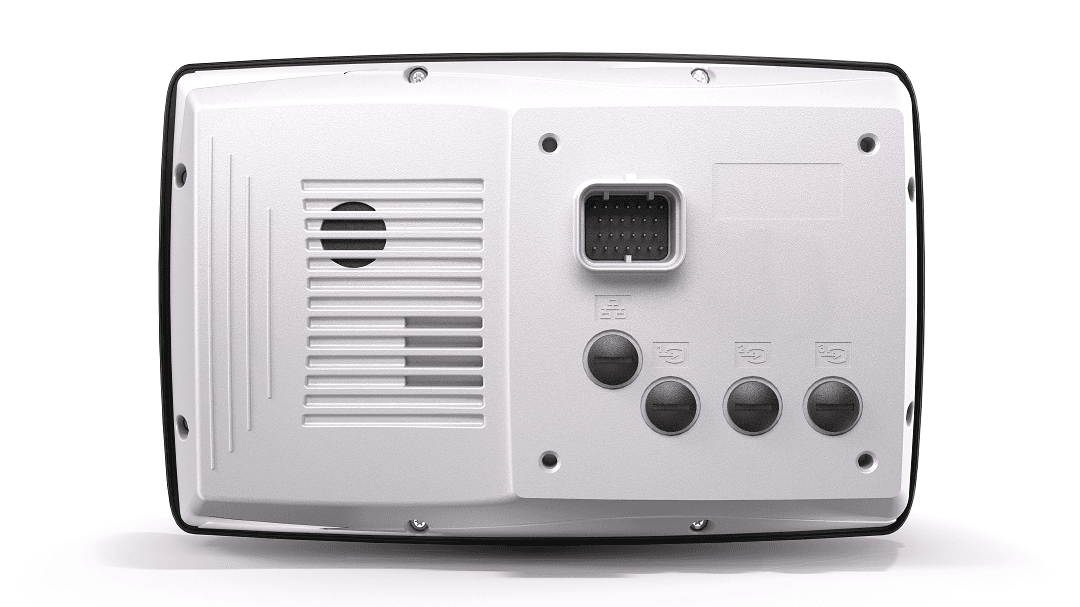

Connectors
Main: AMP Seal, 26 pin; Video: M12 round, 5 pole, B-coded; Ethernet: M12 round, 4 pole, D-coded

Documents

Topcon OPUS A6e basic datasheetTopcon OPUS A6e full datasheetTopcon OPUS A6e operating manual
