Topcon OPUS A3s
The OPUS A3s adds tactile controls to the compact A-series format, making it useful where operators need both touch input and physical interaction. It suits vehicle, plant and machine applications that need a small but capable control display.

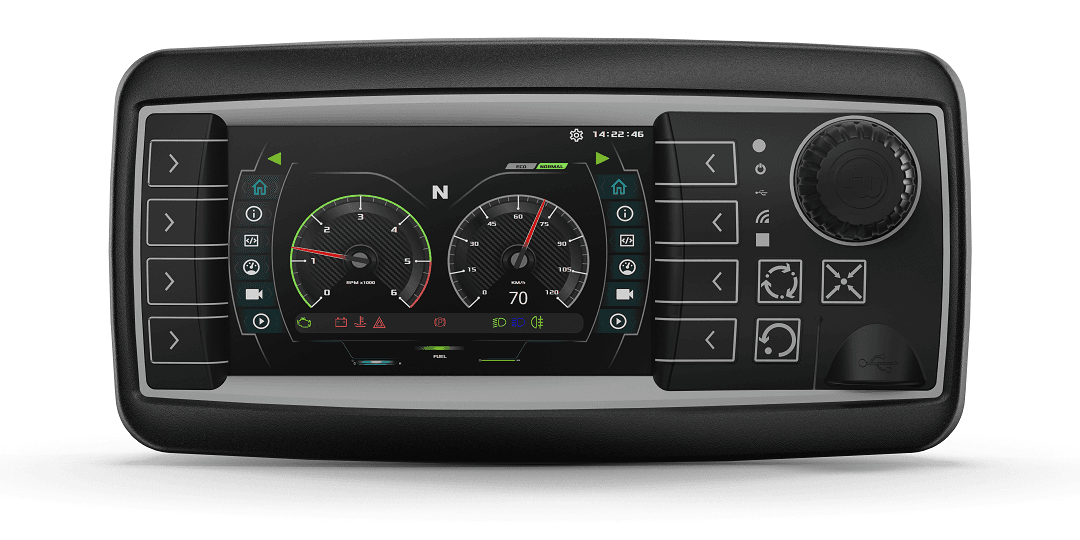

Topcon OPUS A3s front view 1/4
Highlights
- Display: 4.3 in, 15:9 TFT transmissive; 480 x 272 px, 400 cd/m2; Contrast ratio 400:1
- Operator controls: 8 softkeys; 3 hardkeys; Encoder; Touchscreen
- Interfaces: 2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; Ethernet 10/100 Mbit/s Base T; 1 x RS232 (only RxD, TxD, GND)...
- Rugged rating: operating -30 to +65 deg C, storage -40 to +85 deg C, IP65/IP66 protection
- Protocols: CANopen; CANfreestyle; J1939
Technical data
- Display
- 4.3 in, 15:9 TFT transmissive; 480 x 272 px, 400 cd/m2; Contrast ratio 400:1
- User interface
- 8 softkeys; 3 hardkeys; Encoder; Touchscreen
- Processor
- 32-bit, 532 MHz; Freescale I.MX35
- Operating system
- Linux Kernel 3.0.0 or higher
- Memory
- 256 MB DDR2 RAM; 1 GB NAND flash
- Interfaces
- 2 x CAN-Bus ISO 11898; CAN specification 2.0 B active; Ethernet 10/100 Mbit/s Base T; 1 x RS232 (only RxD, TxD, GND); Analog/Digital I/O: 4 analog/digital inputs; 3 digital outputs; 1 USB 2.0 full speed on main connector; 1 USB 2.0 high speed on front
- Supported protocols
- CANopen; CANfreestyle; J1939
- Power supply
- 9 to 36 V DC
- Environmental conditions
- Operating -30 to +65 deg C; Storage -40 to +85 deg C; Protection: IP65/IP66; Mechanical Shock: Level 2; Random Vibration: Level 2; Sinusoidal Vibration: Level 2
- Housing
- Orientation landscape or portrait; W198 x H98 x D64.7 mm; excl. connector and cables
- Sensors and indicators
- Light sensor; Multicolor-LED; 3 Status-LEDs
- Audio
- Buzzer, approx. 60 dB(A)

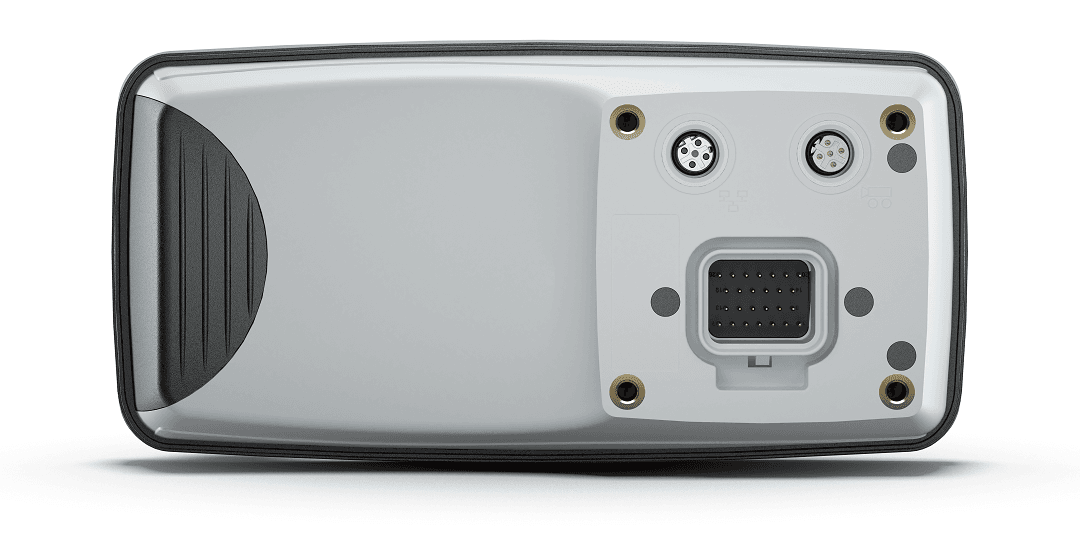

- Connectors
- Main: AMP Seal, 26 pin; Video: M12 round, 5 pole, B-coded; Ethernet: M12 round, 4 pole, D-coded
