Topcon OPUS A series
Topcon OPUS A3e
The OPUS A3e is a compact A-series operator display for mobile machinery and control panels where space, cost and CAN-Bus integration matter. Eltronic can help specify the screen, wiring, mounting and software route around the wider application.

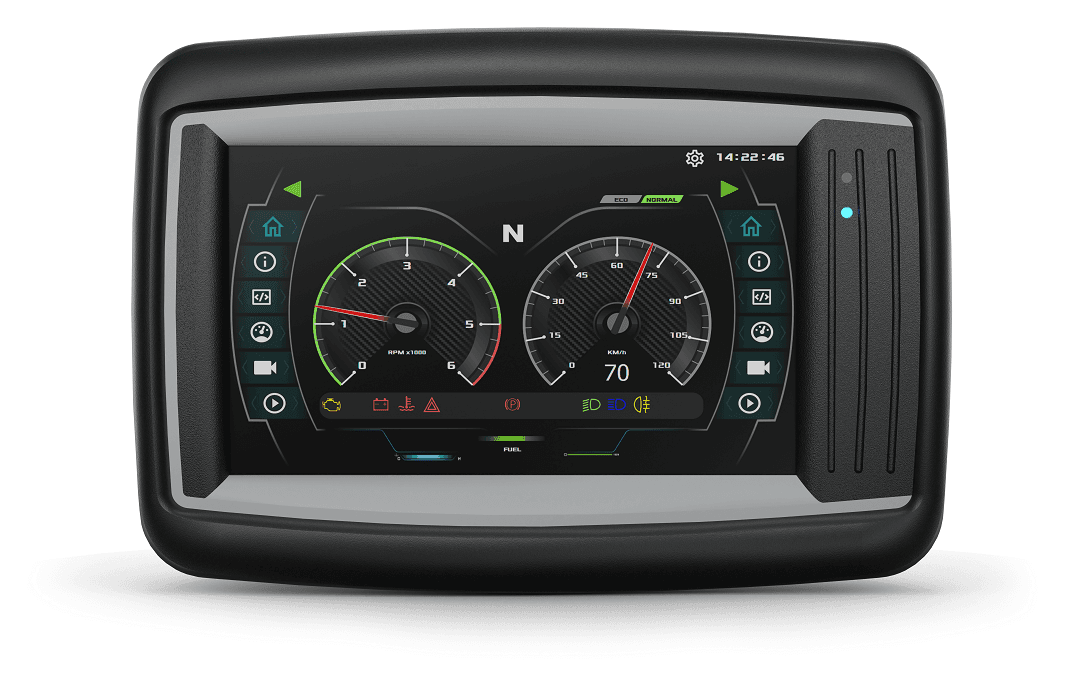

Topcon OPUS A3e front view 1/4
Highlights
- Display: 4.3 in, 15:9 TFT, 480 x 272 px, 400 cd/m2
- Operator controls: Touchscreen option
- Interfaces: 2 x CAN-Bus, Ethernet, RS232, USB 2.0 full speed, analog/digital I/O
- Rugged rating: operating -30 to +65 deg C, storage -40 to +85 deg C, IP65/IP66 protection
Technical data
- Display
- 4.3 in, 15:9 TFT, 480 x 272 px, 400 cd/m2
- User interface
- Touchscreen option
- Processor
- 32-bit 532 MHz Freescale I.MX35
- Memory
- 256 MB DDR2 RAM, 1 GB NAND flash
- Interfaces
- 2 x CAN-Bus, Ethernet, RS232, USB 2.0 full speed, analog/digital I/O
- Power supply
- 9 to 36 V DC
- Environmental conditions
- Operating -30 to +65 deg C, storage -40 to +85 deg C, IP65/IP66 protection
- Housing
- Compact housing under 1 kg
